Vestil QUICK LIFT 24VDC HAND STEEL RAISED HT 57" 175#
Status: Available
Lead Time to Ship for Qty of 1 = 18 Business Days
Priced Per: EACH
SKU:
PEL-88S-D3
$2,646.91
DC powered battery is fast and quite
White HDPE platform offers durability and aesthetics
Chain driven platform operation provides precise positioning
Touch-pad control allows for easy operation
Sold Seperately for: PEL-HOOK, PEL-SPIN, PEL-DSPIN, PEL-VBLK, PEL-CONV, PEL-PAIL, PEL-RR, PEL-PL-5
White HDPE platform offers durability and aesthetics
Chain driven platform operation provides precise positioning
Touch-pad control allows for easy operation
Sold Seperately for: PEL-HOOK, PEL-SPIN, PEL-DSPIN, PEL-VBLK, PEL-CONV, PEL-PAIL, PEL-RR, PEL-PL-5

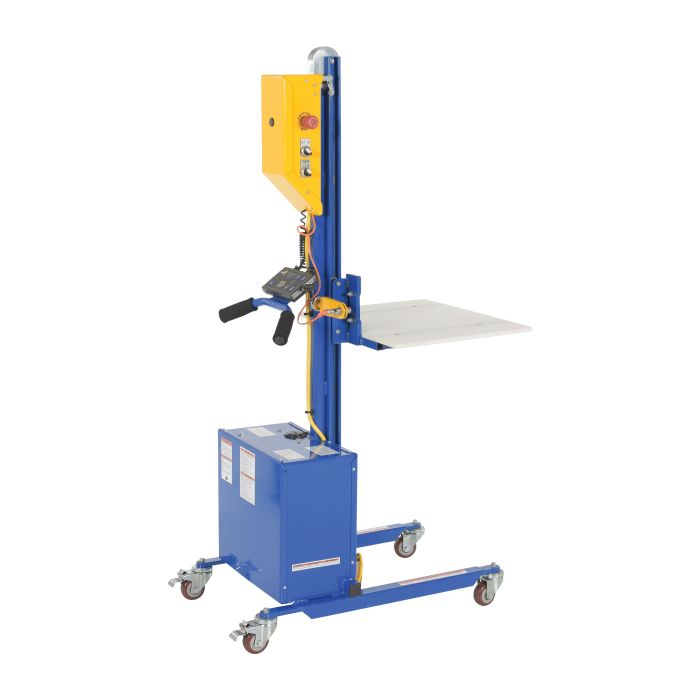

The DC Powered Quick Lift is a quiet, lightweight unit used for transport and positioning loads quickly with just the push of the button. The unit is battery operated with a high density polyethylene platform. It features a low profile design for maneuvering in narrow aisles and confined spaces. The poly casters consist of two swivel and two swivel-locking that are standard. The DC system runs with an AC on-board charger.
| Weight | 193.0 |
|---|---|
| Width (in.) | 23.5 |
| Length (in.) | 37.5625 |
| Height (in.) | 65.3125 |
| Uniform Capacity (lb.) | 175 |
| Platform Width (in.) | 23-1/2 |
| Platform Length (in.) | 18-1/2 |
| Platform Thickness (in.) | 1/2 |
| Lowered Height (in.) | 5-5/8 |
| Raised Height (in.) | 57 |
| Caster Diameter (in.) | 3 |
| Caster Type | (2) Swivel (2) Swivel with Brake |
| Caster Material | Poly-on-Poly |
| Horizontal Load Center (in.) | 9 |
| DC Voltage | 24 |
| AC Charger Voltage | 115 |
| Lift Speed (in./second) Loaded | 17 |
| Lift Speed (in./second) Unloaded | 10 |
| Includes | Fully Welded Frame |
| Handle Length (in.) | 6 |
| Handle Material | Steel |
