Vestil SELF-DUMP HOPPER LD 3 CU YD 2K BLUE
Volume Cubic Yards 3
Usable Chute Size ( W x D x H) 78 3/16" x 63 3/4" x 41 1/2"
Overall Size (W x D x H) 81 7/16" x 61" x 50 3/4"
Fork Pocket Centers 28"
Net Wt. 898 lbs
Quick Ship

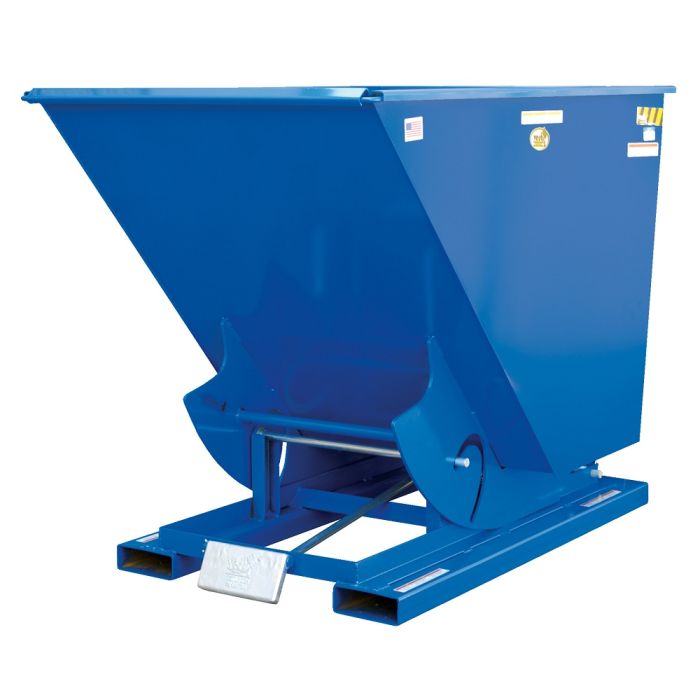

This Self Steel Dumping Hopper automatically dumps when bumper release contacts side of dumpster. The Self Dumping Steel Hopper with Bumper Release, returns to an upright and locked position automatically after it dumps. Also includes a cable that may be operated from the seat of the fork truck to manually dump the hopper. A locking chain is provided to secure the hopper to the fork truck. Usable fork pockets are 7-1/2"W x 2-1/2"H. Constructed with durable, consistent robotic welds. D-33, D-50, D-75 and D-100 are stackable if you stack the top hopper turned 90° from the bottom. Base fork pockets are 3/16" thick. Powder coat blue finish.
Volume Cubic Yards 3
Usable Chute Size ( W x D x H) 78 3/16" x 63 3/4" x 41 1/2"
Overall Size (W x D x H) 81 7/16" x 61" x 50 3/4"
Fork Pocket Centers 28"
Net Wt. 898 lbs
Quick Ship
| Additional Spec | Fork Pocket Centers 28", Usable fork pockets 7-1/2"W x 2-1/2"H, Base fork pockets 3/16" thick |
|---|---|
| Weight | 908.0 |
| Width (in.) | 81.75 |
| Length (in.) | 68.625 |
| Height (in.) | 51.8125 |
| Uniform Capacity (lb.) | 2,000 |
| Steel (gauge) | 12 |
| Volume (cu. yd.) | 3 |
| Fork Pocket Center (in.) | 28 |
| Usable Fork Pocket Width (in.) | 7-1/2 |
| Usable Fork Pocket Height (in.) | 2-1/2 |
| Cable Length (in.) | 48 |
| OSHA | 29 CFR 1910.178(m)(5)(iii) |
