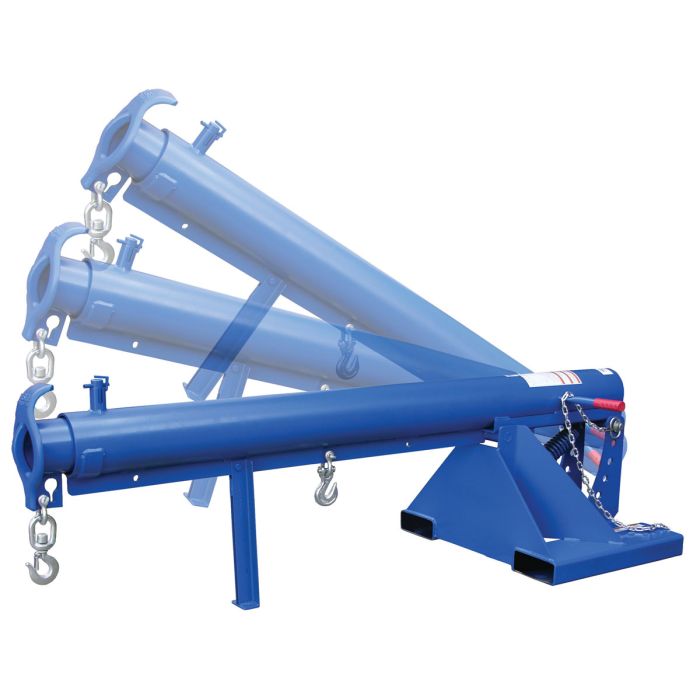

Lift Master Booms - Telescoping Orbit Boom - 8000 Lb Cap.

Status: Available
Lead Time to Ship for Qty of 1 = 28 Business Days
Priced Per: EACH
SKU: LM-OBT-8-24
$3,726.93
  • Overall Height - 28"
  • Capacity - 8,000 lbs.
  • Usable fork pockets are 7 1/4"W x 2 1/4"H
  • Net Weight - 734 lbs.


A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.

Unique performance, convenience and safety features are built into every Lift Master Boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. Telescopic units extend to 144" and come with an infinitely adjustable locking screw (except orbit booms which features a spring loaded detent).

  • Overall Height - 28"
  • Capacity - 8,000 lbs.
  • Usable fork pockets are 7 1/4"W x 2 1/4"H
  • Net Weight - 734 lbs.


A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.

Additional Spec Usable fork pockets: 7 1/4"W x 2 1/4"H usable on 24" centers
Weight 622.0
Width (in.) 32
Length (in.) 85.25
Height (in.) 28.875
Uniform Capacity (lb.) 8,000
Fork Pocket Center (in.) 24
Fork Pocket Width (in.) 7-1/4 x 2-1/4
Restraint Length (in.) 36
Boom Style Telescoping
Minimum/Maximum Hook Point (in.) 36/144
Single-Hook Capacity at 36" (lb.) 8000
Single-Hook Capacity at 48" (lb.) 6650
Single-Hook Capacity at 60" (lb.) 6000
Single-Hook Capacity at 72" (lb.) 5300
Single-Hook Capacity at 84" (lb.) 4650
Single-Hook Capacity at 96" (lbs.) 4000
Single-Hook Capacity at 108" (lbs.) 3500
Single-Hook Capacity at 120" (lbs.) 3000
Single-Hook Capacity at 132" (lbs.) 2600
Single-Hook Capacity at 144" (lbs.) 2200
Overall Extended Height (in.) 96-1/8
Retracted Hook Height (in.) 5-1/8
Extended Hook Height (in.) 76-9/16
Overall Extended Length (in.) 148-1/2
Max Rotation Degree 37
Boom Type Orbit Boom
OSHA 1910.178(a)(4)
