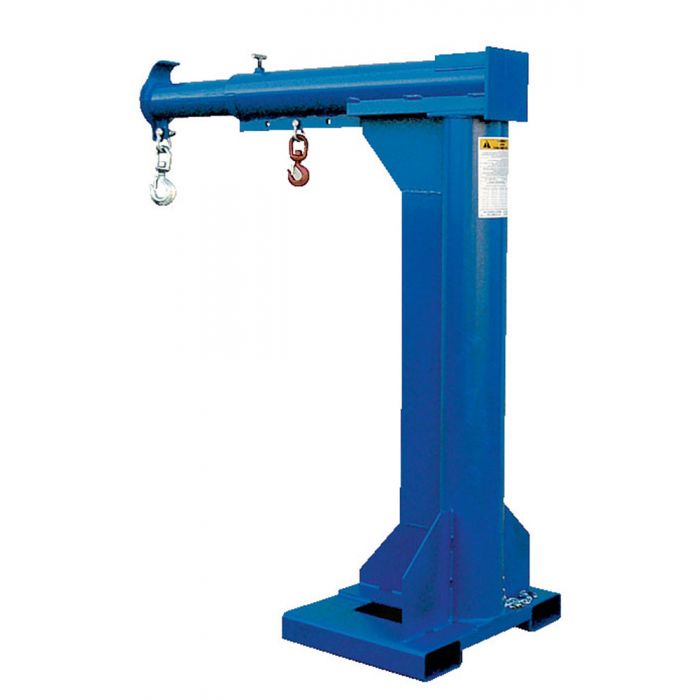

Lift Master Booms - Telescoping High-Rise Boom - 4000 Lb Cap.
Status: Available
Lead Time to Ship for Qty of 1 = 33 Business Days
Priced Per: EACH
SKU:
LM-HRT-4-24
$3,089.98
- CAPACITY: 4,000 LBS
- LOST LOAD - 955 LBS
- OVERALL HEIGHT - 79 13/16"
- LENGTH (RETRACTED) - 54 7/8"
- LENGTH (EXTENDED) - 92 5/8"
- OVERALL WIDTH - 32"
- USABLE FORK POCKET - 2 1/2" X 7 1/2"
- 24" FORK POCKET CENTERS
- 30" MINIMUM HOOK POINT
- 90" MAXIMUM HOOK POINT
- EFFECTIVE THICKNESS: LESS THAN 1"
- TOUGH BAKED IN POWDER COATED BLUE BASE FRAME
W/ YELLOW EXTENSION
Telescopic units extend to 92 5/8" and come with an infinitely adjustable locking screw.
A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.
- CAPACITY: 4,000 LBS
- LOST LOAD - 955 LBS
- OVERALL HEIGHT - 79 13/16"
- LENGTH (RETRACTED) - 54 7/8"
- LENGTH (EXTENDED) - 92 5/8"
- OVERALL WIDTH - 32"
- USABLE FORK POCKET - 2 1/2" X 7 1/2"
- 24" FORK POCKET CENTERS
- 30" MINIMUM HOOK POINT
- 90" MAXIMUM HOOK POINT
- EFFECTIVE THICKNESS: LESS THAN 1"
- TOUGH BAKED IN POWDER COATED BLUE BASE FRAME
W/ YELLOW EXTENSION
Telescopic units extend to 92 5/8" and come with an infinitely adjustable locking screw.
A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.
| Additional Spec | Usable fork pockets: 7 1/2"W x 2 1/2"H usable on 24" centers |
|---|---|
| Weight | 950.0 |
| Width (in.) | 32 |
| Length (in.) | 54.875 |
| Height (in.) | 79.8125 |
| Uniform Capacity (lb.) | 4,000 |
| Fork Pocket Center (in.) | 24 |
| Fork Pocket Width/Height (in.) | 7-1/2 x 2-1/2 |
| Restraint Length (in.) | 36 |
| Boom Style | Telescoping |
| Minimum/Maximum Hook Point (in.) | 30/90 |
| Single-Hook Capacity at 30" (lb.) | 4000 |
| Single-Hook Capacity at 36" (lb.) | 3750 |
| Single-Hook Capacity at 42" (lb.) | 3500 |
| Single-Hook Capacity at 48" (lb.) | 3250 |
| Single-Hook Capacity at 54" (lb.) | 3000 |
| Single-Hook Capacity at 60" (lbs.) | 2750 |
| Single-Hook Capacity at 66" (lbs.) | 2500 |
| Single-Hook Capacity at 72" (lbs.) | 2250 |
| Single-Hook Capacity at 78" (lbs.) | 2000 |
| Single-Hook Capacity at 84" (lbs.) | 1750 |
| Single-Hook Capacity at 90" (lbs.) | 1500 |
| Overall Extended Length (in.) | 92-5/8 |
| Boom Type | High Rise Boom |
| OSHA | 1910.178(a)(4) |
