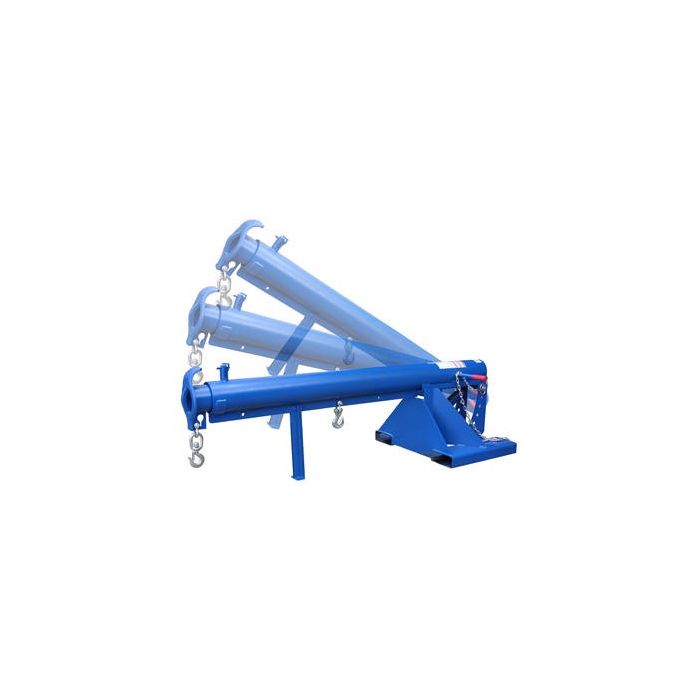

Lift Master Booms - Non-Telescoping Orbit Boom - 6000 Lb Cap.
Status: Available
Lead Time to Ship for Qty of 1 = 28 Business Days
Priced Per: EACH
SKU:
LM-OBNT-6-24
$2,343.85
- Overall Height - 27"
- Capacity - 6,000 lbs.
- Usable fork pockets: 7 1/4"W x 2 1/4"H
- Net Weight - 628 lbs.
A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.
Unique performance, convenience and safety features are built into every Lift Master Boom. Fabricated from structural steel with welding to meet AWS creates a rugged and durable boom that will provide long term service. Telescopic units extend to 144" and come with an infinitely adjustable locking screw (except orbit booms which features a spring loaded detent).
- Overall Height - 27"
- Capacity - 6,000 lbs.
- Usable fork pockets: 7 1/4"W x 2 1/4"H
- Net Weight - 628 lbs.
A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.
| Additional Spec | Usable fork pockets: 7 1/4"W x 2 1/4" usable on 24" centers |
|---|---|
| Weight | 391.0 |
| Width (in.) | 32 |
| Length (in.) | 80.875 |
| Height (in.) | 26.625 |
| Uniform Capacity (lb.) | 6,000 |
| Fork Pocket Center (in.) | 24 |
| Fork Pocket Width (in.) | 7-1/4 x 2-1/4 |
| Restraint Length (in.) | 36 |
| Boom Style | Non-Telescoping |
| Minimum/Maximum Hook Point (in.) | 36/78 |
| Single-Hook Capacity at 36" (lb.) | 6000 |
| Single-Hook Capacity at 48" (lb.) | 5000 |
| Single-Hook Capacity at 60" (lb.) | 4500 |
| Single-Hook Capacity at 72" (lb.) | 4000 |
| Single-Hook Capacity at 78" (lb.) | 3500 |
| Overall Extended Height (in.) | 57-3/16 |
| Retracted Hook Height (in.) | 5-1/2 |
| Extended Hook Height (in.) | 38-1/4 |
| Maximum Tilt Degree | 37 |
| Boom Type | Orbit Boom |
| OSHA | 1910.178(a)(4) |
