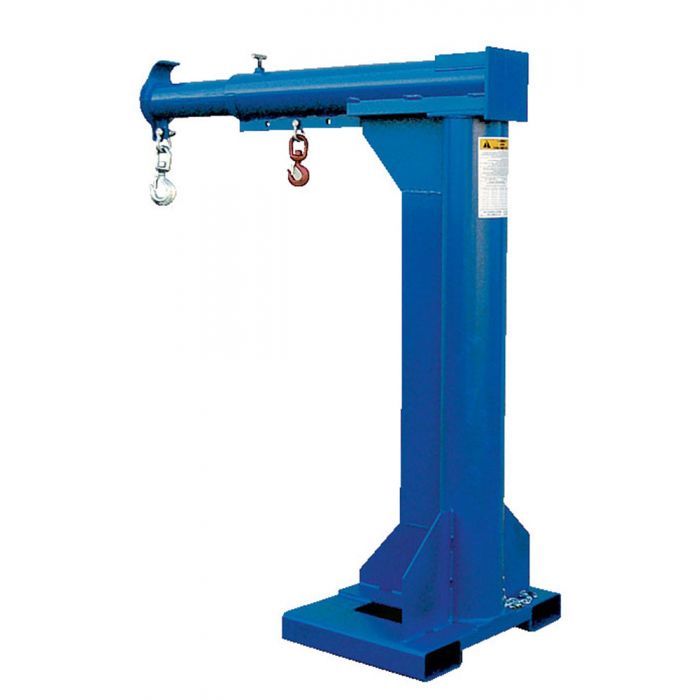

Lift Master Booms - Non-Telescoping High-Rise Boom - 4000 Lb Cap.
Status: Available
Lead Time to Ship for Qty of 1 = 33 Business Days
Priced Per: EACH
SKU:
LM-HRNT-4-24
$2,011.97
- CAPACITY: 4,000 LBS
- LOST LOAD - 890 LBS
- OVERALL HEIGHT - 78 9/16"
- LENGTH - 50 3/8"
- OVERALL WIDTH - 32"
- USABLE FORK POCKET - 2 1/2" X 7 1/2"
- 24" FORK POCKET CENTERS
- 30" MINIMUM HOOK POINT
- 48" MAXIMUM HOOK POINT
EFFECTIVE THICKNESS: LESS THAN 1"
TOUGH BAKED IN POWDER COATED BLUE FINISH
A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.
- CAPACITY: 4,000 LBS
- LOST LOAD - 890 LBS
- OVERALL HEIGHT - 78 9/16"
- LENGTH - 50 3/8"
- OVERALL WIDTH - 32"
- USABLE FORK POCKET - 2 1/2" X 7 1/2"
- 24" FORK POCKET CENTERS
- 30" MINIMUM HOOK POINT
- 48" MAXIMUM HOOK POINT
EFFECTIVE THICKNESS: LESS THAN 1"
TOUGH BAKED IN POWDER COATED BLUE FINISH
A 36" safety restraint secures the boom to the fork truck for safe operation.
Each unit includes two lifting hooks.
| Additional Spec | Usable fork pockets: 7 1/2"W x 2 1/2"H usable on 24" centers. |
|---|---|
| Weight | 810.0 |
| Width (in.) | 32 |
| Length (in.) | 50.375 |
| Height (in.) | 78.5625 |
| Uniform Capacity (lb.) | 4,000 |
| Fork Pocket Center (in.) | 24 |
| Fork Pocket Width/Height (in.) | 7-1/2 x 2-1/2 |
| Restraint Length (in.) | 36 |
| Boom Style | Non-Telescoping |
| Minimum/Maximum Hook Point (in.) | 30/48 |
| Single-Hook Capacity at 30" (lb.) | 4000 |
| Single-Hook Capacity at 36" (lb.) | 3750 |
| Single-Hook Capacity at 42" (lb.) | 3500 |
| Single-Hook Capacity at 48" (lb.) | 3250 |
| Boom Type | High Rise Boom |
| OSHA | 1910.178(a)(4) |
