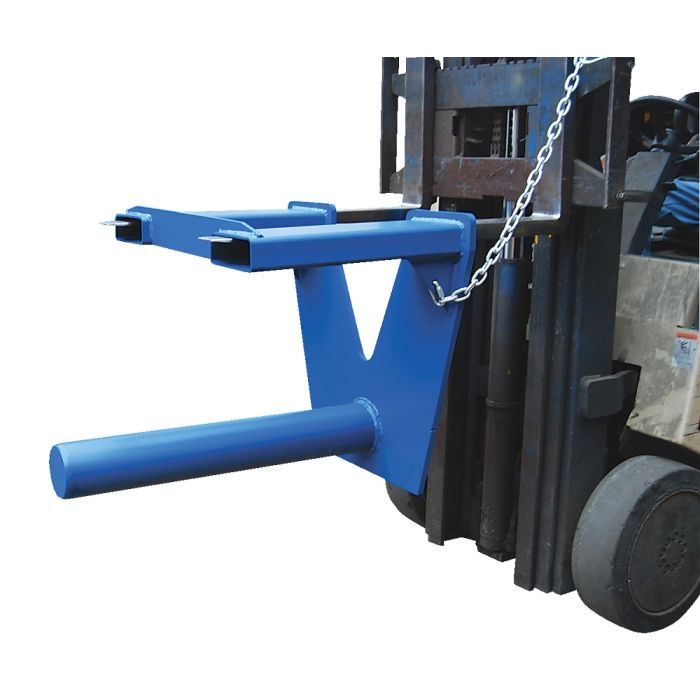

Vestil COIL LIFTER FORK MOUNTED 3000 LB 24 IN
Status: Available
Lead Time to Ship for Qty of 1 = 33 Business Days
Priced Per: EACH
SKU:
CCF-24-4
$835.92
The Coil Lifter is used to easily maneuver many types of coiled material. The Coil Lifter is available in both class II carriage mount and fork mount. To accommodate multiple core sizes, units can be ordered with either a 4" or 5" diameter ram pole. Coil Lifters are manufactured to accommodate multiple core sizes. Sturdy steel construction and painted blue. Fork mounted units feature 7½" wide x 2" tall (usable) fork pockets while the carriage mounted units are class II with a spring loaded lock pin to secure the unit to fork truck carriage.
The Coil Lifter is used to easily maneuver many types of coiled material. The Coil Lifter is available in both class II fork mount. To accommodate multiple core sizes, units can be ordered with either a 4" or 5" diameter ram pole. Coil Lifters are manufactured to accommodate multiple core sizes. Sturdy steel construction and painted blue.
Fork mounted units feature 7½" wide x 2" tall (usable) fork pockets while the carriage mounted units are class II with a spring loaded lock pin to secure the unit to fork truck carriage.
Mounting Type : Fork Mounted - Inverted
Length : 24"
Pole Diameter : 4"
Capacity : 3,000 pounds
Net Weight : 265
| Weight | 258.0 |
|---|---|
| Width (in.) | 34 |
| Length (in.) | 30 |
| Height (in.) | 29.25 |
| Uniform Capacity (lb.) | 3,000 |
| Usable Ram Length (in.) | 24 |
| Ram Diameter (in.) | 4-1/2 |
| Usable Fork Pocket Width (in.) | 7-1/2 |
| Usable Fork Pocket Height (in.) | 2-1/2 |
| Fork Center (in.) | 24 |
| Mount Style | Fork, Inverted |
| Maximum Coil Width (in.) | 17-1/2 |
